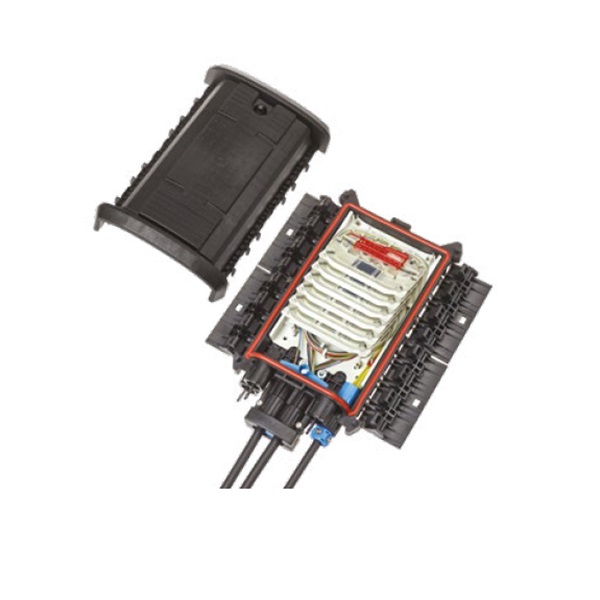

The BPEO size 3 organizer has 48 slots for splice cassettes (5 mm). This gives a typical capacity of 576 shrink splices when using the 5 mm standard density cassette. This number can be doubled when using G.657 fiber and the 5 mm high density cassette. Both splices are waterproof (IP68) and can withstand continuous pressure in all environments such as underground installation, manhole, wall or pole mounting.
To be ordered additionally and separately:
- Splice cassettes, suitable for the splicing method and splice protection type used

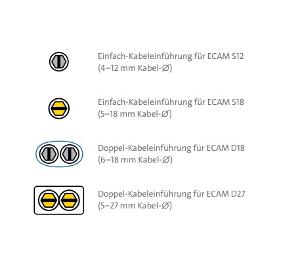

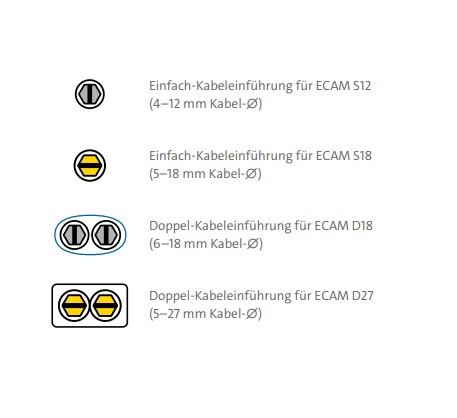

- ECAM cable entries according to the number and diameter of the cables to be installed
- Wall or pole mounting brackets
N501496A BPE/O-3 EVOL BDP 48 PAS

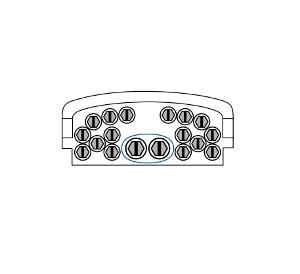

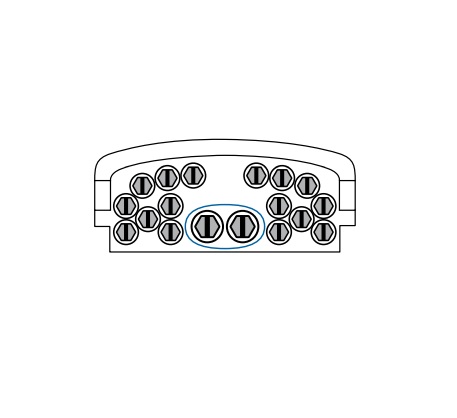

Branch distribution point (BDP D18 - Branch Distribution Point)Fiber distribution point for branch cables; Two possible configurations:
- One double connection for double ECAM D18, 16 single connections for ECAM S12;
- One double connection for two single ECAM S12, 16 single connections for ECAM S12
