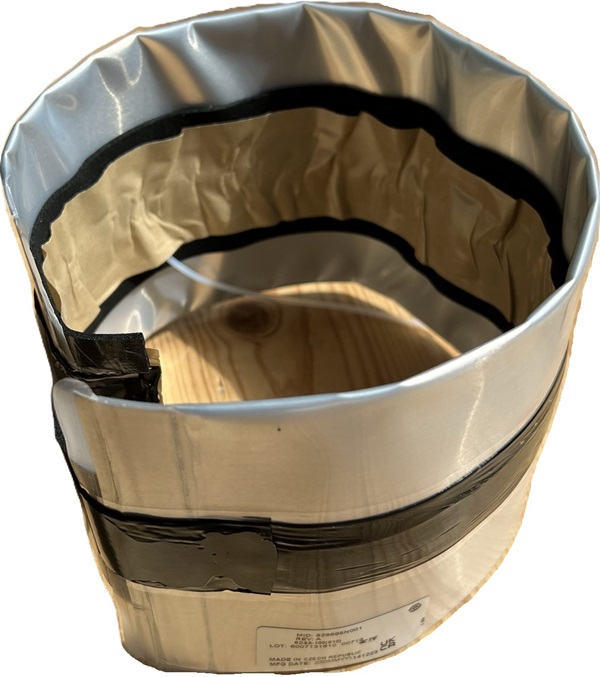

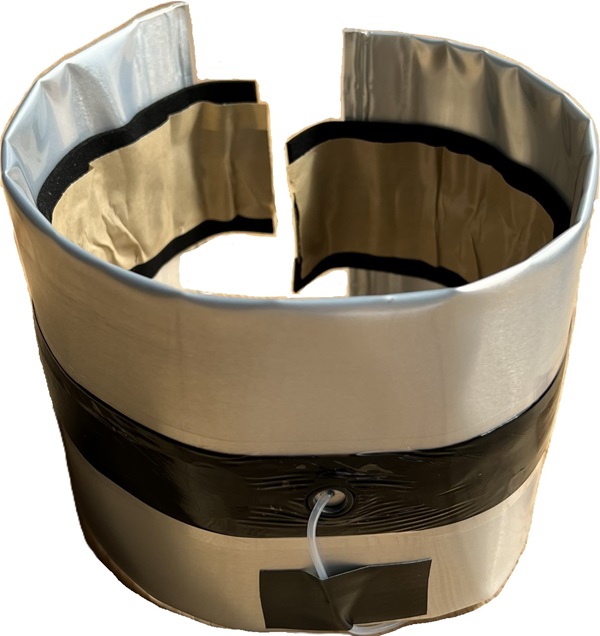

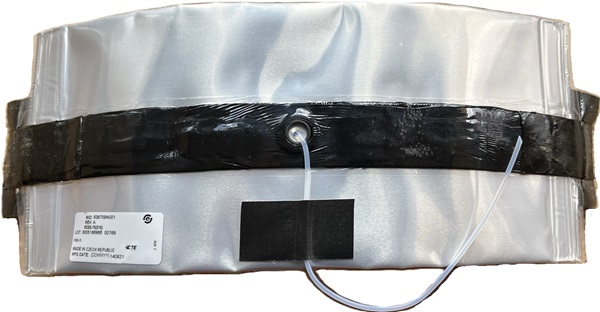

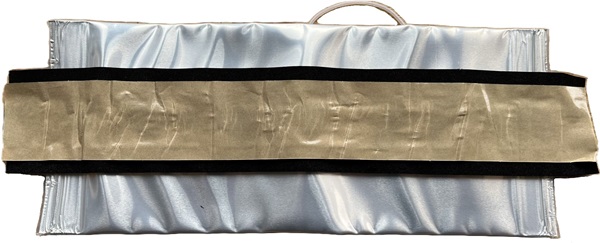

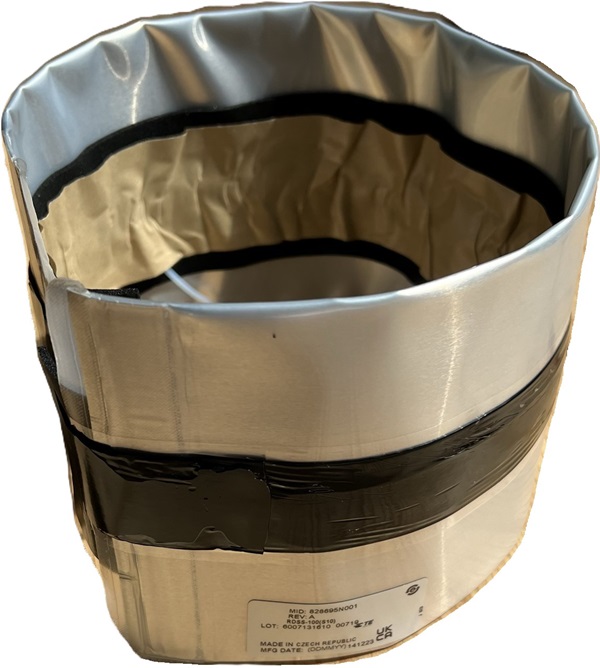

The inflatable sealing element for inner pipe Ø 32.5 mm to 180 mm.
For sealing plastic and metal pipes and core drill holes with 0 to max. 2 cables.
An RDSS clip must be used for more than 2 cables.
When selecting the RDSS - TDUX sealing element in combination with empty conduits, the size of the empty conduit must be taken into account.
| RDSS - TDUX sealing element | Empty conduit inside Ø | Double assignment with RDSS clip |
| RDSS-45 / TDUX-45 | 33 - 45 mm | |
| RDSS-60 / TDUX-60 | 45 - 60 mm | |
| RDSS-75 / TDUX-75 | 55 - 75 mm | |
| RDSS-100 / TDUX-100 | 75 - 110 mm | 115 - 120 mm |
| RDSS-125 / TDUX-125 | 100 - 125 mm | 130 - 150 mm |
| RDSS-150 / TDUX-150 | 125 - 150 mm | 155 - 180 mm |
