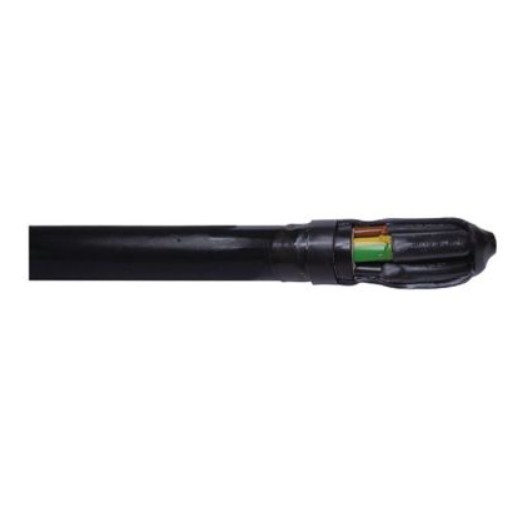

SEMH4 Stress-resistant end sleeve
with inner caps and outer cap for plastic cables and wires
For the stress-resistant termination of unarmoured plastic cables and wires as well as plastic cables with concentric conductors with PVC, PE and XLPE insulation (e.g. N(A)YY, N(A)XY, TT, N(A)2Y2Y, N(A)2X2Y, N(A)YC(W)Y)
Scope of delivery
Sealing caps, shrink cap with tension arrow, cleaning cloth, emery cloth, assembly instructions
Features
- Large wire and cable cross-section range
- Resistant to chemical influences
- Resistant to alkaline earths
- Stabilized against UV rays
- Free from paint wetting impairment substances
- Halogen-free
- Transverse watertight
- High electrical insulation values
- High mechanical strength
Application/suitability
- Indoor
- Outdoor
- Ground
- Water
- Installation ducts
- Empty conduits
Voltage level
- U0 /U (Um ) 0.6/1 (1.2) kV
Test standards
- DIN EN 50393 (corresponds to VDE 0278)
Storage time/shelf life
- Unlimited shelf life
