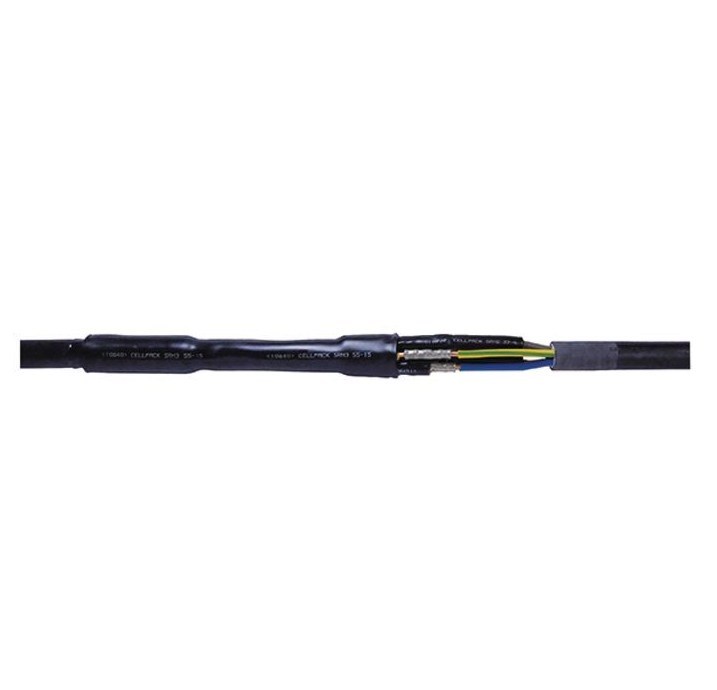

SMH5 Heat-shrink connection sleeve
for unarmored plastic cables
4 or 5 conductors
Universally applicable for connecting plastic cables and wires with PVC, PE and XLPE insulation (e.g. N(A)YY, NYM, TT).
Suitable for crimp connectors.
Properties
- Compact dimensions
- Large wire and cable cross-sectional area
- Resistant to chemical influences
- Resistant to alkaline earths
- Stabilized against UV rays
- Free from paint wetting impairment substances
- Halogen-free
- Transverse watertight
- High electrical insulation values
- High mechanical strength
Application/suitability
- Indoor - outdoor
- Ground - Water
- Installation ducts
- Empty conduits Voltage level
- U0 /U (Um ) 0.6/1 (1.2) kV Test standards
- DIN EN 50393 (corresponds to VDE 0278)
Storage time/durability
- Unlimited shelf life
